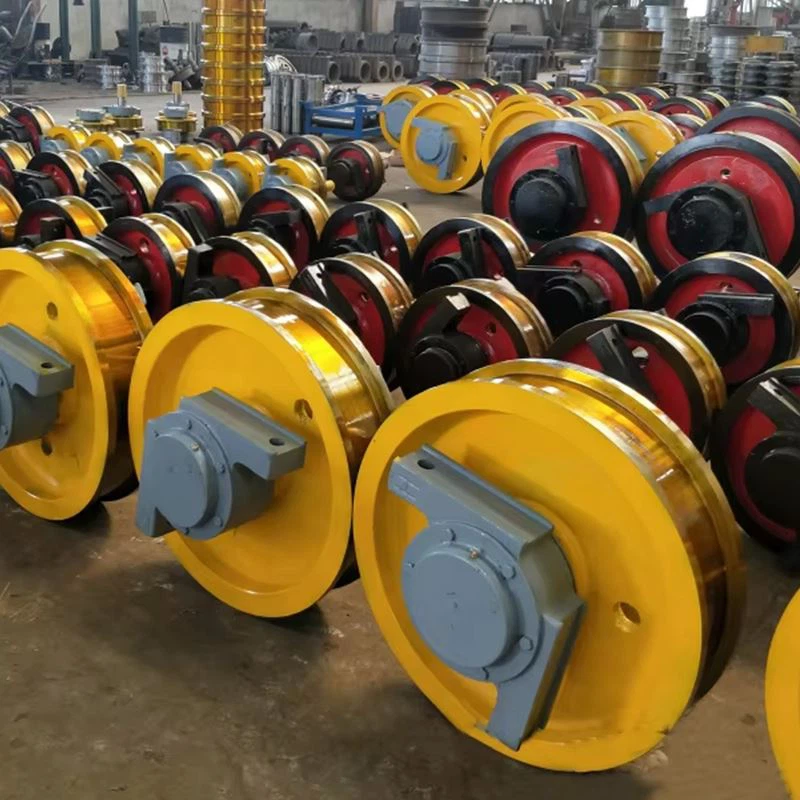

Lub kaum ntuj lub thawv crane log thaiv
Cov khoom lag luam
Lub cav crane log block yog cov tseem ceeb hauv lub tshuab crane, feem ntau yog siv los txhawb cov kev ua haujlwm thiab ua tiav kev txav mus los ntawm kev tsheb nqaj hlau.
Lub cav crane log pob crane log tau muab faib ua ib lub log thaiv thiab chav log flange. Ib leeg-flange log thaiv yog siv rau trolley khiav log ntawm overhead cranes. Lub cuab yeej trolley muaj ib qho me me, zoo rigidity, thiab tsis yooj yim rau derail. Muab ob npaug rau-flange log thaiv yog siv rau crane khiav lub log ntawm overhead cranes. Lub crane muaj lub luv luv, lub log muaj flanges ntawm ob sab kom tiv thaiv kev ua haujlwm derailment.
Cov ntaub ntawv txheej txheem
Ib leeg flange Crane Log Thaiv
|
Ntaus |
Dimension (mm) |
|||||||||||
|
D |
D1 |
B |
B1 |
A |
L |
h |
S |
M |
d |
l |
d1 |
|
|
Tsav Log Len250 |
250 |
280 |
90 |
70 |
180 |
237 |
80 |
180 |
30 |
45 |
82 |
M20 |
|
Passive Gull250 |
250 |
280 |
90 |
70 |
180 |
/ |
80 |
180 |
30 |
/ |
/ |
|
|
Tsav Tsheb Log 3215 |
315 |
345 |
100 |
81 |
200 |
320 |
105 |
225 |
50 |
65 |
105 |
|
|
Passness Logen ]15 |
315 |
345 |
100 |
81 |
200 |
/ |
105 |
225 |
50 |
/ |
/ |
|
|
Tsav Log AL350 |
350 |
380 |
100 |
81 |
200 |
320 |
105 |
225 |
50 |
65 |
105 |
|
|
Passive Luj Log350 |
350 |
380 |
100 |
81 |
200 |
/ |
105 |
225 |
50 |
/ |
/ |
|
|
Tsav Tsheb Log400 |
400 |
440 |
120 |
100 |
240 |
365 |
120 |
260 |
50 |
80 |
130 |
|
|
Passive Lee400 |
400 |
440 |
120 |
100 |
240 |
/ |
120 |
260 |
50 |
/ |
/ |
|
|
Tsav Tsheb LowerM500 |
500 |
540 |
130 |
110 |
270 |
365 |
140 |
300 |
50 |
80 |
130 |
|
|
Passive Lower500 |
500 |
540 |
130 |
110 |
270 |
/ |
140 |
300 |
50 |
/ |
/ |
|
Muab ob npaug--flange Crane Log Thaiv
|
Ntaus |
Dimension (mm) |
|||||||||||
|
D |
D1 |
B |
B1 |
A |
L |
h |
S |
M |
d |
l |
d1 |
|
|
Tsav Tsheb LowerM500 |
500 |
540 |
210/160 |
150/100 |
280 |
400 |
140 |
310 |
50 |
75 |
105 |
M24 |
|
Passive Lower500 |
500 |
540 |
280 |
/ |
140 |
310 |
50 |
/ |
/ |
|||
|
Tsav Tsheb Log ប wheelφ6 |
600 |
640 |
210/160 |
150/100 |
280 |
415 |
140 |
310 |
50 |
85 |
130 |
|
|
Passive Luj Log600 |
600 |
640 |
280 |
/ |
140 |
310 |
50 |
/ |
/ |
|||
|
Tsav Tsheb LogEn700 |
700 |
750 |
210/160 |
150/100 |
315 |
455 |
160 |
350 |
80 |
90 |
130 |
M30 |
|
Passive Log2000 |
700 |
750 |
315 |
/ |
160 |
350 |
80 |
/ |
/ |
|||
|
Tsav Tsheb Log800 |
800 |
850 |
210/160 |
150/100 |
365 |
500 |
190 |
410 |
90 |
95 |
130 |
|
|
Passive Log800 |
800 |
850 |
365 |
/ |
190 |
410 |
90 |
/ |
/ |
|||
Nta
Kev ntseeg tau - Cov kabmob kev muaj peev xwm
Engineered kom dhau tau cov khoom lag luam siab ntsug thaum lub sijhawm ua haujlwm ruaj khov, nws muaj cov qauv ruaj khov, ua rau nws zoo tagnrho rau kev nruam ntev - cov haujlwm tas mus li.
Ntau haiv neeg kev teeb tsa
Muaj nyob rau hauv ob qho tib si - Rim thiab ob - npoo qauv, nws caters rau cov sib txawv thiab kev ua haujlwm, muaj kev tiv thaiv kev cuam tshuam zoo ntawm kev ua haujlwm.
Siab - Cov Ntaub Ntawv Lub Zog
Lub log yog xuas tes ua kom zoo siab - lub zog alloy zoo li zg {}}, thiab 65mn, muab kev cuam tshuam zoo thiab cuam tshuam tsis kam.
Tsim Qauv Customizable
Cov tsis muaj xws li log log, npoo dav, thiab taug qab cov nyiam nyiam ua qauv los yog cov khoom siv - muab cov duab kos.
Compact qauv thiab kev teeb tsa yooj yim
Lub thawv Angular cov kab mob yog tsim nrog cov qauv kev cog lus, nyob qhov chaw tsawg. Nws tuaj yeem yooj yim tau siv siv bolts, txhim kho kev ua ke thiab chaw nruab nrab.
Khoom qauv
1.Wheel lub cev
Lub log yog precision-cam khwb cia lossis forged los ntawm high-qib alirots (piv txwv li, zg}), thiab tshav kub kom txhim kho kom muaj zog thiab qaug zog. Lub tsuj thiab flange yog cnc-machined los xyuas kom meej kev sib tw sib xyaw thiab lub neej ntev.
Nplooj ntawv 2. -prange tsim
Muaj nyob rau hauv ib leeg-flange thiab ob-flange kev teeb tsa. Ib qho kev siv nkaus xwb flange yog feem ntau siv nyob rau hauv cov kev thov trolley luv luv, thaum lub sijhawm ob-flange yog qhov tsim nyog rau cov choj ntev lossis gantry cranes los tiv thaiv kev ua haujlwm tom qab.

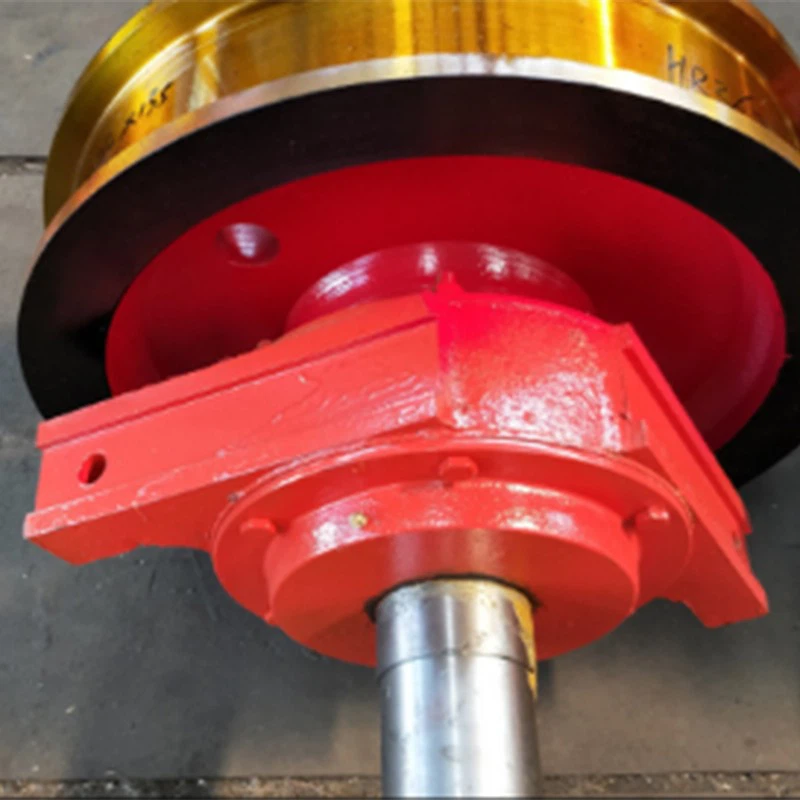

3.THangle Bearing Housing
L-zoo li tus kheej (kaum sabgled) cov kabmob tsev nyob muab cov pob taws nruj uas bolts ncaj qha rau lub xeem. Nws txo cov machining yuav tsum ntawm cov nqaj txhawb thiab ua kom yooj yim nruab thiab kev txij nkawm.
4.Qhov thiab cov kabmob sib dhos
Lub log yog mounted rau lub siab-zog ncej nrog sib sib zog nqus groove pob bearings lossis spherical cov menyuam cov kabmob, nyob ntawm cov khoom yuav tsum tau ua. Bearings yog ntim thiab ua ntej-lub neej thiab txo kev txij nkawm.
5.Installation hloov tau
Lub log thaiv yog tsim ua chav kawm nrog cov qauv bolt lub qhov qauv, ua rau nws yooj yim los hloov lossis rov qab mus rau cov tshuab uas twb muaj lawm. Tus qauv tsim kom meej meej qhov kev tso cai thiab cov kev sib zog los ua kom muaj kev taug kev du.
Daim Ntawv Thov Khoom
Lub kaum sab crane log thaiv yog qhov tseem ceeb tiv thaiv tau siv nyob rau hauv lub cav tsav ntawm Choj thiab Gantry cranes. Nws pab ntau lub zog tseem ceeb, suav nrog cov kabmob tag nrho cov kev siv lub zog, nqus cov kab rov tav, thiab ua kom cov kev taug kev du, txhim khu kev qha raws txoj kev tsheb ciav hlau.
TusIb Leeg-Flange LogKev tsim qauv yog qhov zoo tshaj plaws rau cov kev ua haujlwm trolley hauv cov ntawv thov luv luv, qhov twg cov qauv rigidity yog cov rog siab thiab yav tom qab yog tsawg heev. Nws ua kom muaj kev ua tau ruaj khov thaum tswj kev taug kev. Nyob rau hauv sib piv, tusMuab ob npaug rau-flanged logKev teeb tsa yog tsim rau ntev ntev crane taug kev kev. Nws muab cov kev taw qhia txuas ntxiv txuas ntxiv kom tiv thaiv kev ua haujlwm ntawm kev ua haujlwm zoo rau kev ua haujlwm zoo tshaj plaws thiab cov kev xav tau zoo.
